SYDNEY HARBOUR VIEWS
This original Mosman Federation home had potential for spectacular Sydney Harbour Bridge views, however due to an exposed western orientation the view had been sacrificed to protect the occupants from the penetrating heat and glare. The existing planning arrangements were similarly less than ideal, with a powder room and staircase blocking the best harbour vantage points and no suitable outdoor living areas.
The existing 3 storey bow window was removed and the interior spaces carefully reconfigured on each level to optimise available views, which were then shielded with expansive balconies to provide necessary thermal comfort and outdoor amenity. Minimalist floor to ceiling glazing created a seamless indoor/outdoor connection with the spectacular Sydney Harbour panorama beyond, which can now be enjoyed all year round.

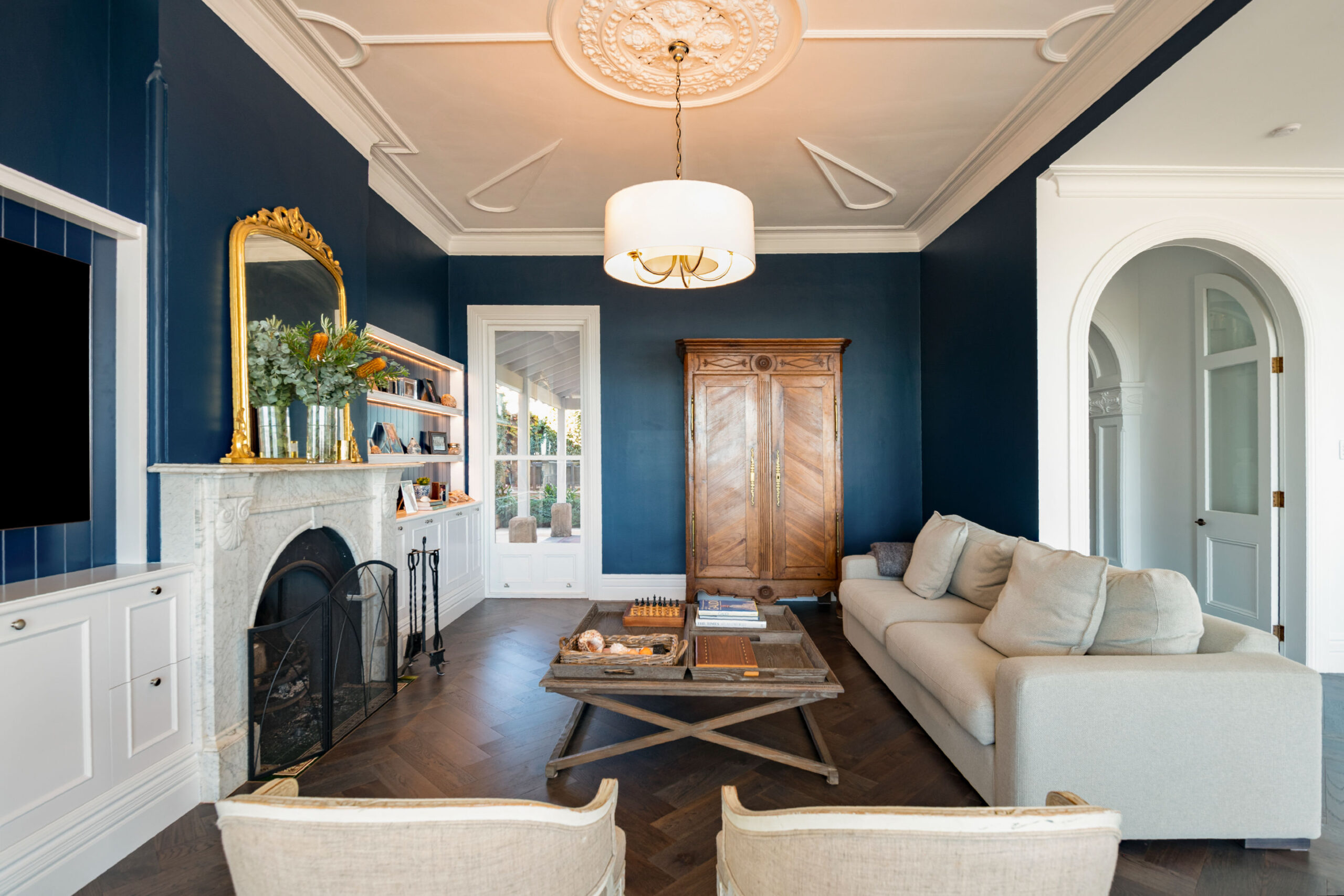

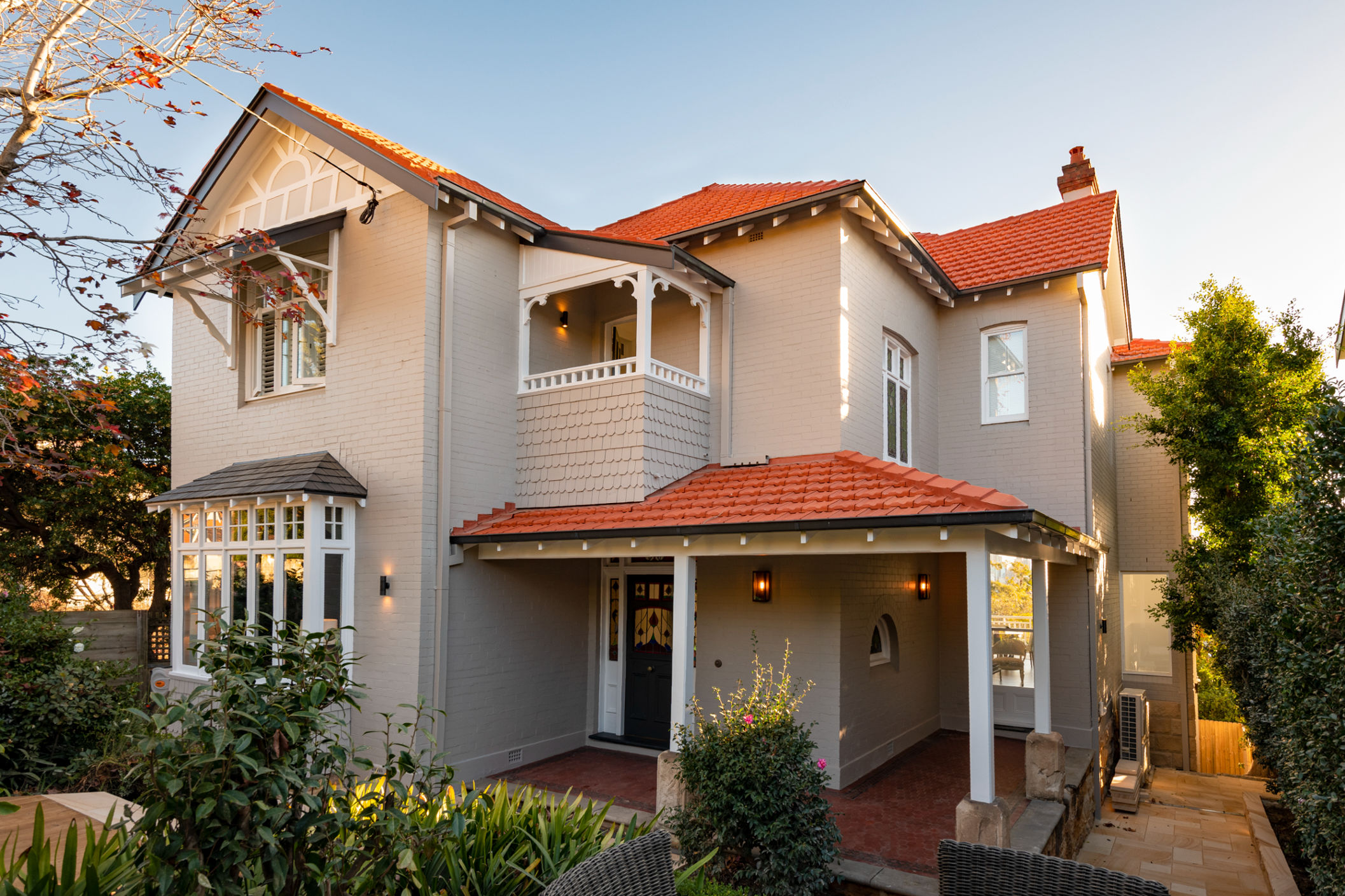

Consideration was duly given during the planning and design process to ensure the new additions did not result in any loss of harbour views for the adjoining properties, which resulted in a quick Council Approval process and a harmonious outcome for all the surrounding residents. The home’s interior and exterior were significantly restored and revitalised as part of the renovation process, in conjunction with thermal performance upgrades such as double glazing and enhanced insulation throughout.
Builder: Reliant Constructions. Photography: Paramount Studios.

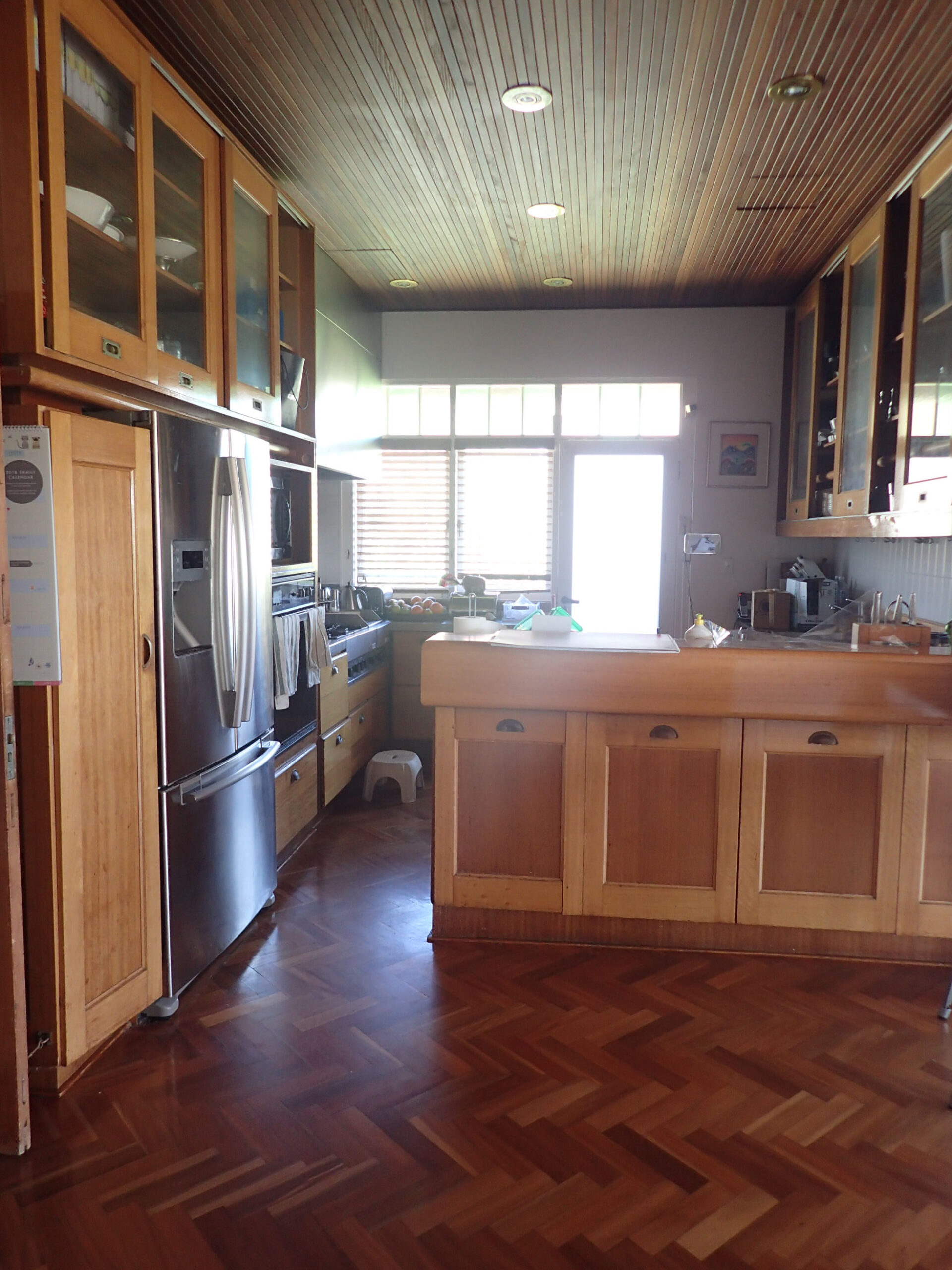

Before
After
Before
After
Before
After

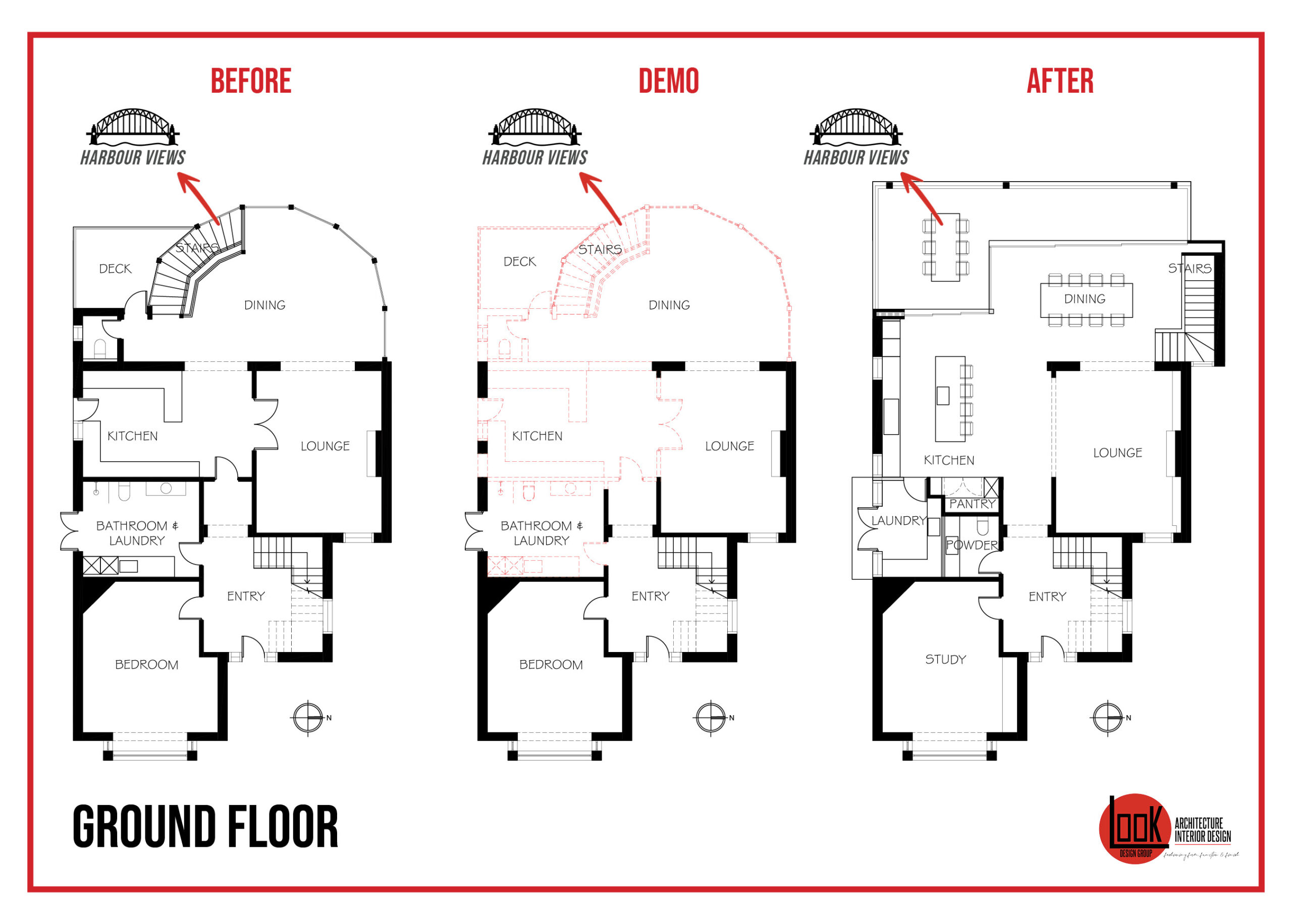

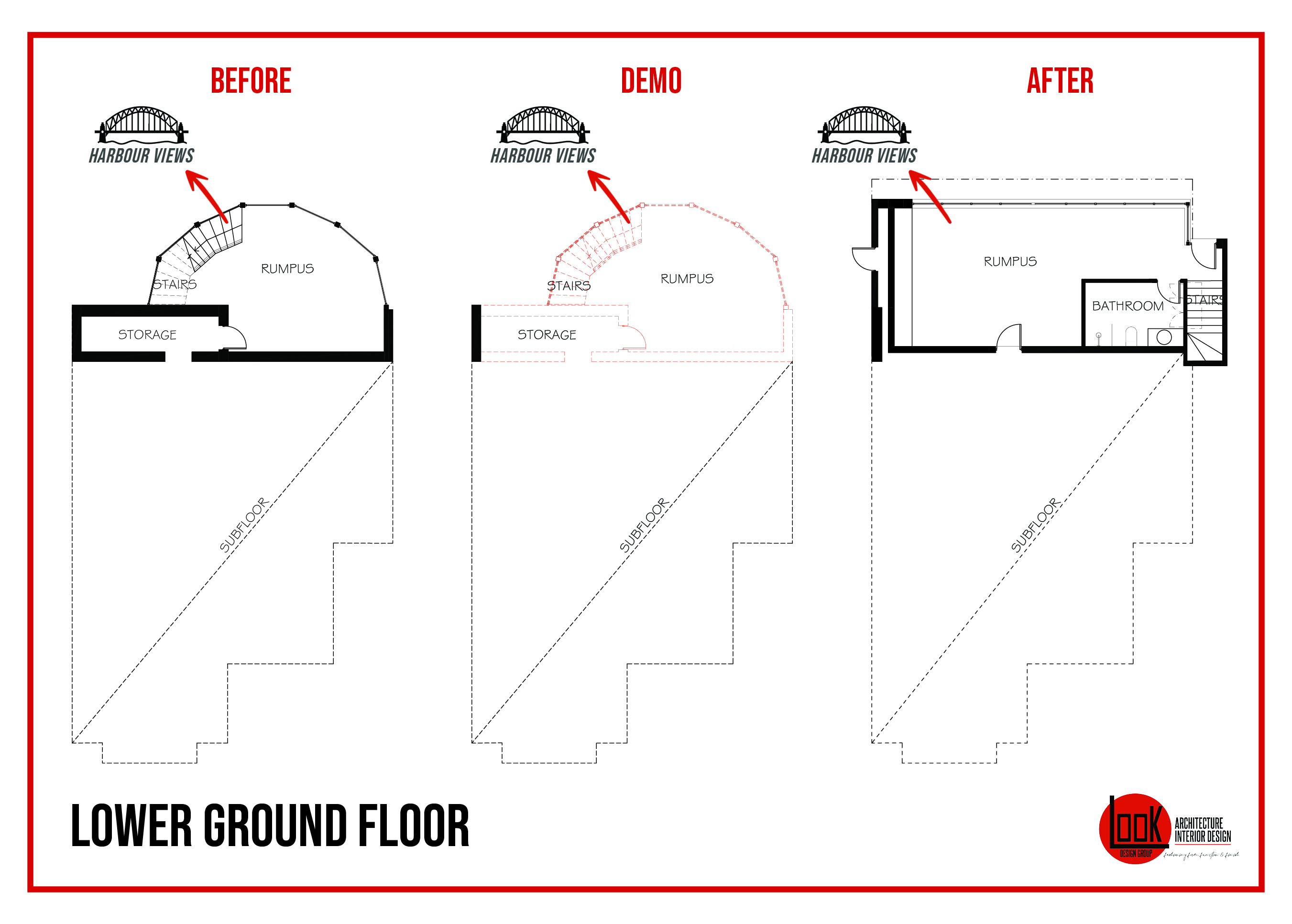

Floor plan fix

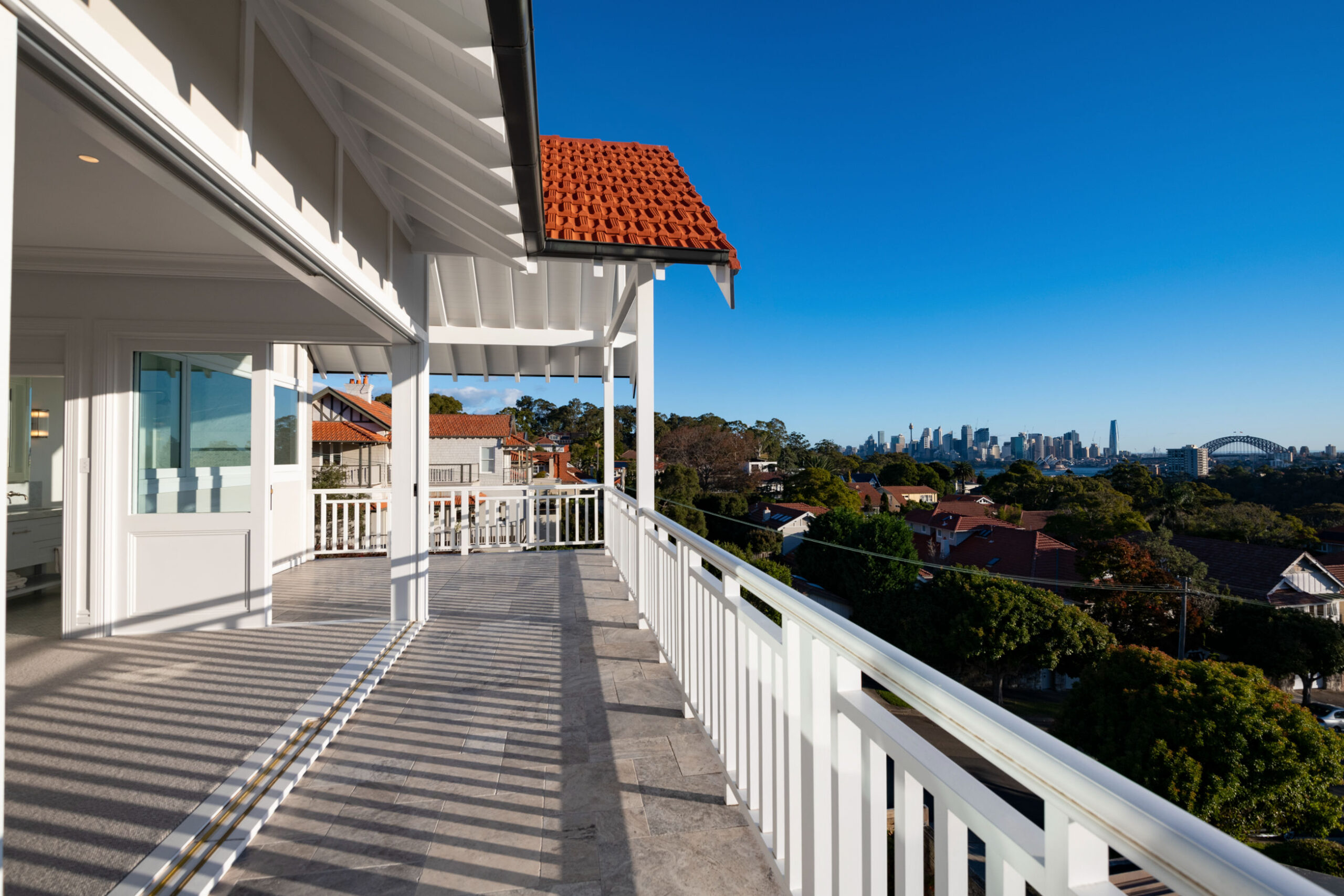

- Floor plate modified to incorporate expansive covered terraces, to maximize harbour views & provide western shade.

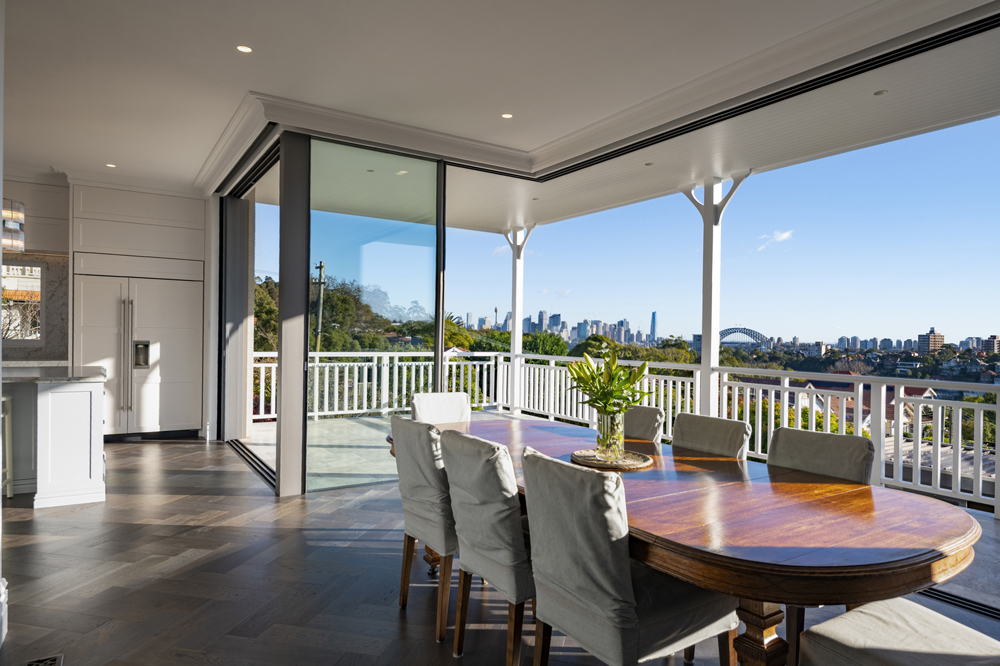

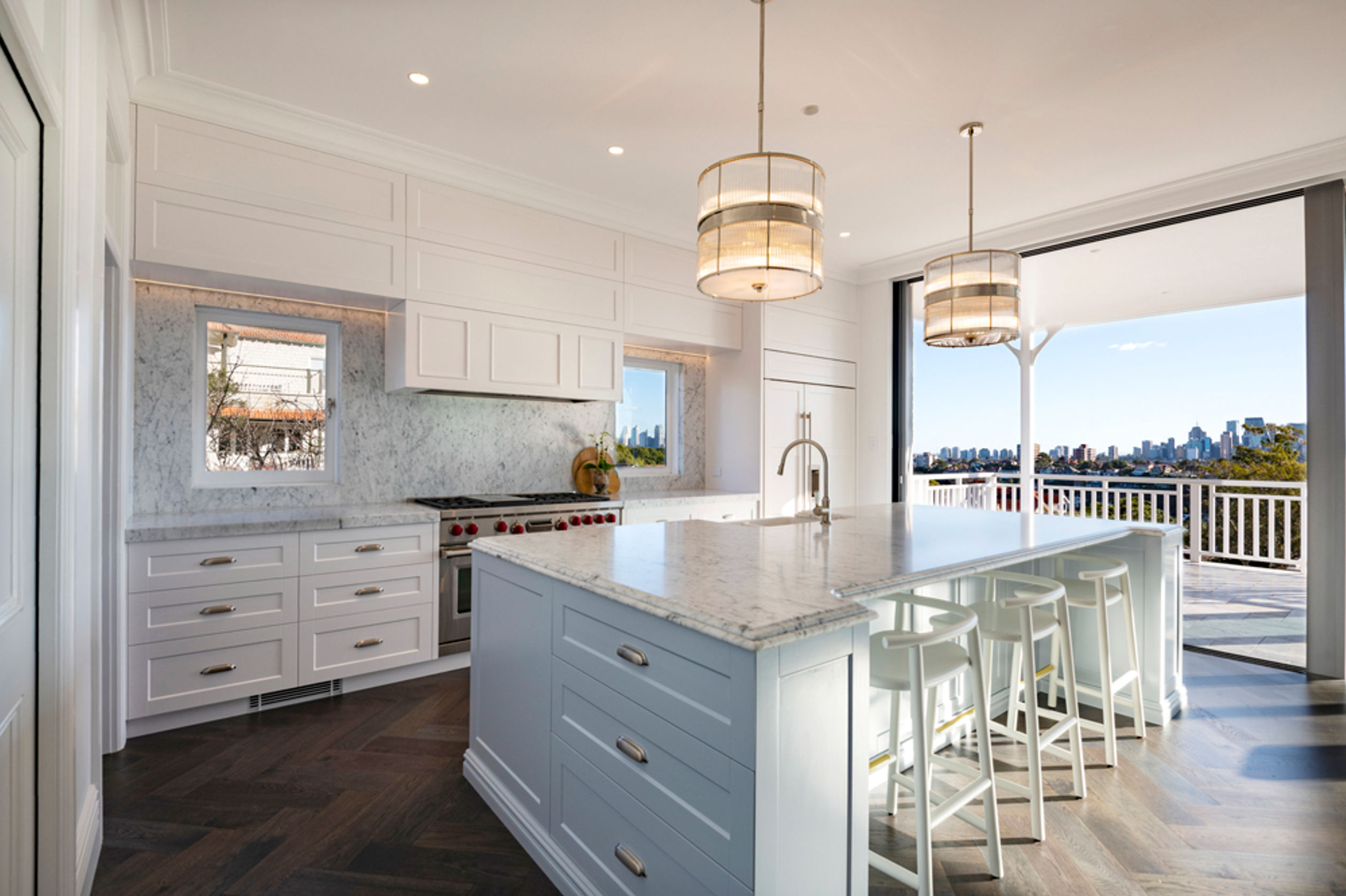

- Open plan kitchen & dining orientated towards harbour views & protected from western sun, with powder room & stairs repositioned away from views.
- Minimalist stacking sliding doors for seamless indoor-outdoor amenity.
- Master bedroom & robe areas more spacious & protected from western sun.
- Separate laundry & powder room with external access.
Sustainable fix
- Carbon minimisation through high retention of existing heritage building fabric.
- Improved thermal comfort through shading & orientation, double glazing & performance insulation.
- Lowered operational energy through improved thermal comfort, natural ventilation & daylight optimisation.
- Durable & non-toxic materials.
- Improved connection with outdoors.
